How to Install a Dual Monitor Arm Mount: Step-by-Step Setup Guide

Why Proper Installation Matters

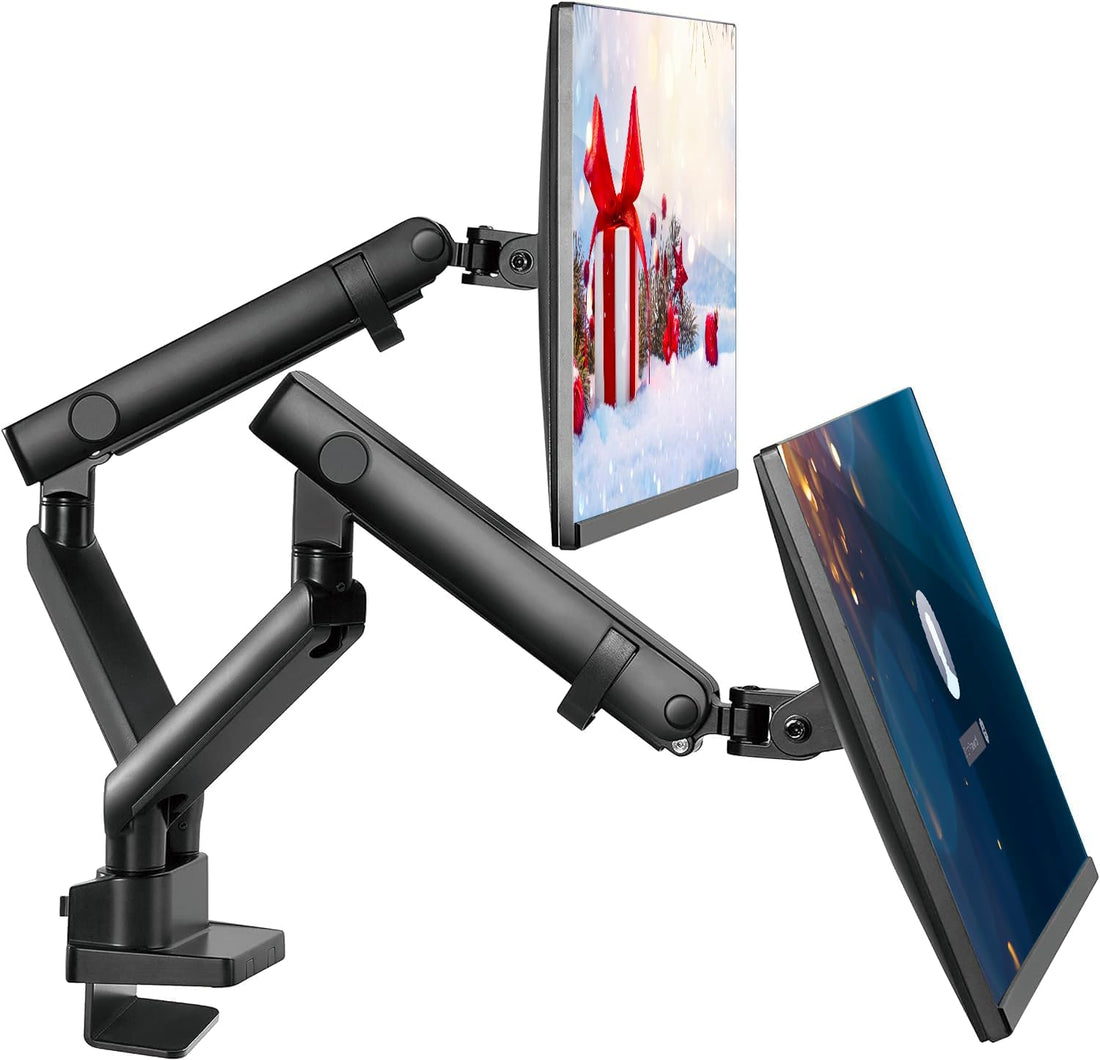

A dual monitor arm transforms your workspace — but only if it's installed correctly. A poorly mounted arm can strain your desk, damage your screens, or fail to hold position. This guide walks through every step, from checking desk compatibility to adjusting the final angle, using the Lifelong Dual Monitor Arm Mount as the reference. The same principles apply to most VESA-compatible arm mounts.

What You Need Before Starting

Gather these before you open the box:

• Your monitors. Check that each is 17–32 inches and has VESA 75×75 or 100×100 mm mounting holes on the back. Most flat monitors have them; some curved or ultrawide models may need an adapter plate.
• Your desk. The clamp fits surfaces up to 3 inches thick. Measure your desk edge and confirm there's enough clearance underneath for the clamp plate — about 2 inches of vertical space below the desktop.
• A screwdriver. A Phillips-head screwdriver is typically all you need. Some installations also benefit from a small hex key (usually included).
• An extra pair of hands. Lifting and aligning two monitors onto the arms is much easier with a helper.

Step 1: Install the Desk Clamp

The clamp is the foundation of the entire setup. If this isn't secure, nothing else works.

1. Position the clamp. Place the clamp base on your desk where you want the arm to sit. Center it between the two screen positions for balanced reach.
2. Adjust the clamp. Turn the clamp screw until the bottom plate contacts the underside of your desk. Tighten until the clamp is firm — check that it doesn't shift when you tap it sideways. Do not overtighten; the clamp should be snug, not crushing the desk surface.
3. Check for obstructions. Confirm no cables, desk-frame supports, or drawer slides interfere with the clamp plate underneath.

Step 2: Attach the Mounting Brackets to the Monitors

Each monitor gets a VESA bracket before the arm goes on.

1. Remove the monitor stand. Lay your monitor face-down on a soft, clean surface (a towel or blanket works well). Remove the original stand by unscrewing it or pressing the release latch — keep the screws in a safe place if you ever want to reattach it.
2. Align the bracket. Place the VESA bracket against the mounting holes on the back of your monitor. Use the screws included with the arm — they come in multiple lengths; choose the ones that fit your monitor's threaded depth without protruding into the screen housing.
3. Tighten evenly. Hand-tighten all four screws first, then use the screwdriver to snug them in a cross pattern (top-left, bottom-right, top-right, bottom-left). Stop when they feel secure; overtightening can crack the monitor housing.

Step 3: Mount the Arms and Route Cables

Now bring the monitors to the arm.

1. Install the arm pole. Slide the vertical pole into the desk clamp and secure it with the locking screw. Some models require you to feed the cable-management covers onto the pole first — check the instruction sheet.
2. Attach monitors one at a time. Lift the first monitor and hook its bracket onto the VESA plate on the arm. It should click into place or engage with the mounting hooks. Tighten the retaining screws that hold the monitor to the arm plate.
3. Route the cables. Run your monitor cables (DisplayPort, HDMI, power) through the cable-management channels or clips along the arm. This is much easier with both arms loose — you can reach the channels before the arms are tightened into final position.
4. Repeat for the second monitor.

Step 4: Balance and Tighten

With both monitors attached, adjust the arms for balanced movement.

1. Level each monitor. Loosen the tilt adjustment slightly, set the monitor to your preferred viewing angle, and retighten. Aim for a slight rearward tilt (2–5 degrees) as a starting point.
2. Adjust arm tension. Most dual monitor arms have a hex-key adjustment at the arm joint that controls how easily the arm moves. If the arm drops or rises on its own, tighten this screw. If it's too stiff to move, loosen it.
3. Arrange your layout. Position the left and right screens at the distance and height that feels natural. For most users, the top of the monitor should be at or just below eye level when sitting upright.
4. Final tighten. Lock all pivot, swivel, and rotation screws once everything is positioned correctly.

Check Your Setup Before Declaring Done

Run through this quick checklist:

• The desk clamp is tight and doesn't shift under light pressure.
• Each monitor bracket has all four screws engaged and snug.
• Cables are routed through the arm channels, not dangling loosely.
• Both screens hold position when you lean on the desk or type vigorously.
• You can tilt, swivel, and rotate each monitor freely within the range you need.

Frequently Asked Questions

Can I install this by myself?

Technically yes — but a helper makes lifting and aligning the second monitor significantly easier. If working alone, attach and balance one monitor completely before starting the second arm.

Will the clamp damage my desk?

The clamp uses a flat contact surface with a protective pad. On solid wood, metal, and most laminate desks, it won't leave marks if installed at moderate tightness. Avoid overtightening on thin or hollow-core desks — place a small reinforcing plate under the clamp if the desktop feels flexible.

Does the mount work with curved monitors?

Flat monitors are the simplest fit. Curved monitors can work with this mount if they have standard VESA mounting holes, but the curved profile may affect how the bracket sits. Check your monitor's user manual for VESA compatibility and any special adapter requirements.

What if my monitor doesn't have VESA holes?

Some monitors, especially budget or all-in-one models, omit the VESA pattern. In that case, you will need a VESA adapter plate designed for your specific monitor model. Check the manufacturer's website or contact support before purchasing any arm mount.

Can I adjust the height of each arm independently?

This mount uses articulated arms that move through a vertical arc rather than a gas-spring lift column. You adjust height by repositioning the arm at the pivot joint and tightening it — it's a manual, continuous adjustment, not a preset click-stop.

— The Lifelong Team
